Most teams treat quantum feature maps like static library functions. You pick a circuit, run your data, and hope for a high accuracy score. When the model fails to deliver, you swap the circuit for another and repeat the process. This manual "guess-and-check" cycle is inefficient, expensive, and fundamentally ignores the structure of your specific data. A fixed circuit is a blunt instrument. It lacks the ability to adapt its internal logic to the nuances of your dataset. By relying on manual selection, you are effectively ignoring the potential for the hardware to learn the optimal encoding geometry itself.
Why Is a Classical SVM Sometimes Not Enough?
A standard Support Vector Machine (SVM) works by drawing the best boundary line to separate two classes of data. When your data is not linearly separable in its raw form, a classical SVM uses kernels to lift that data into a higher-dimensional space where a separation boundary can finally be drawn. Quantum computers perform this lifting process using a feature-map circuit, which encodes data into quantum states.
The quantum kernel then calculates the inner product (or fidelity) between these encoded points: $$K(x_i, x_j) = |\langle \Phi(x_i) | \Phi(x_j) \rangle|^2$$ where $\Phi(x)$ represents the quantum feature map mapping classical data $x$ into the quantum state space. This calculates the metric the classifier uses to learn. However, when you rely on a fixed, hand-picked circuit, you are betting that your intuition matches the complex geometry of your dataset. That is rarely the case.
How Does the AQSVC Change the Game?

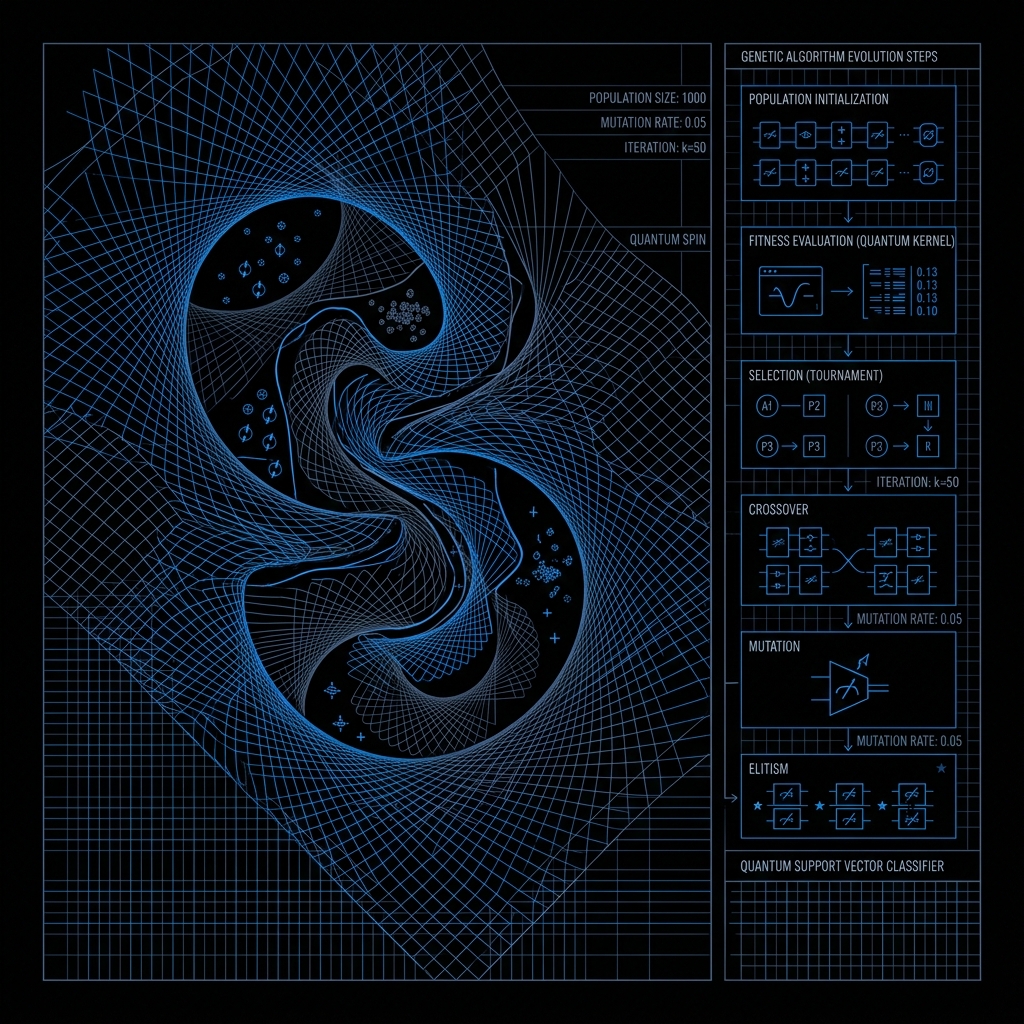

The Adaptive Quantum Support Vector Classifier (AQSVC) moves away from static, human-guessed circuits by pairing a quantum kernel with a genetic algorithm. Instead of betting on one circuit, the AQSVC keeps a population of candidate circuits. It tests them against your data, keeps the best performers, and breeds them over multiple generations to evolve a feature map that fits your data's unique topology.
This process allows the feature map to "learn" the optimal encoding geometry, rather than forcing your data into a pre-defined mold.
A Hands-On Look at the Banknote Authentication Dataset
To bridge the gap between theory and execution, we implemented the AQSVC using the Banknote Authentication dataset. This dataset is a standard benchmark containing features extracted from images of genuine and counterfeit banknotes using Wavelet Transform tools.
- Dataset Link: Banknote Authentication (Kaggle)
- Feature Set: Variance, Skewness, Curtosis, and Entropy.
- Target: Binary classification ($0$ for counterfeit, $1$ for genuine).
Step-by-Step Implementation on Bloq Quantum
Moving from conceptualizing an AQSVC to running it on hardware requires an environment that handles the orchestration for you. On the Bloq Quantum platform, this implementation is streamlined to keep your focus on the model’s performance rather than infrastructure overhead.
Follow these steps to deploy your adaptive quantum workflow:
-
Initialize the Experiment Workspace: Navigate to the Experiments Module.

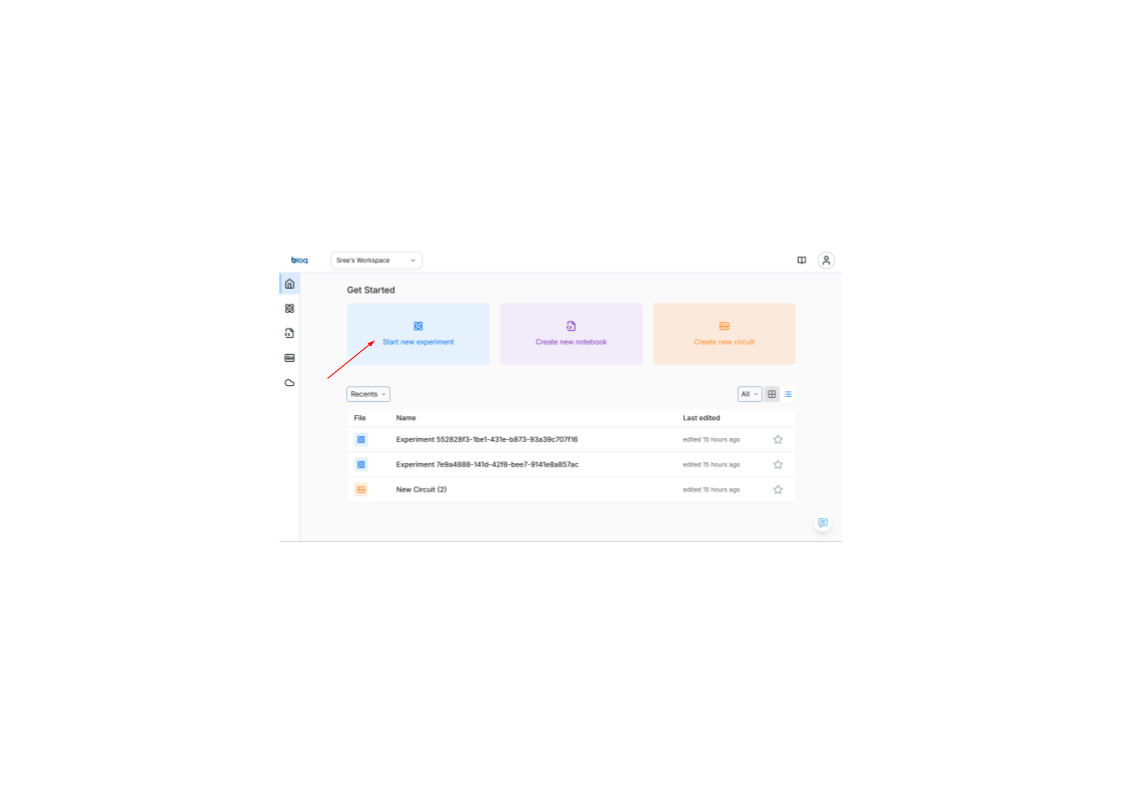

Figure 1: Initializing the AQSVC Experiment Workspace within the Experiments module. -
Create a New Project: Select the AQSVC Template, which pre-loads the necessary genetic algorithm backbone and quantum kernel structures.

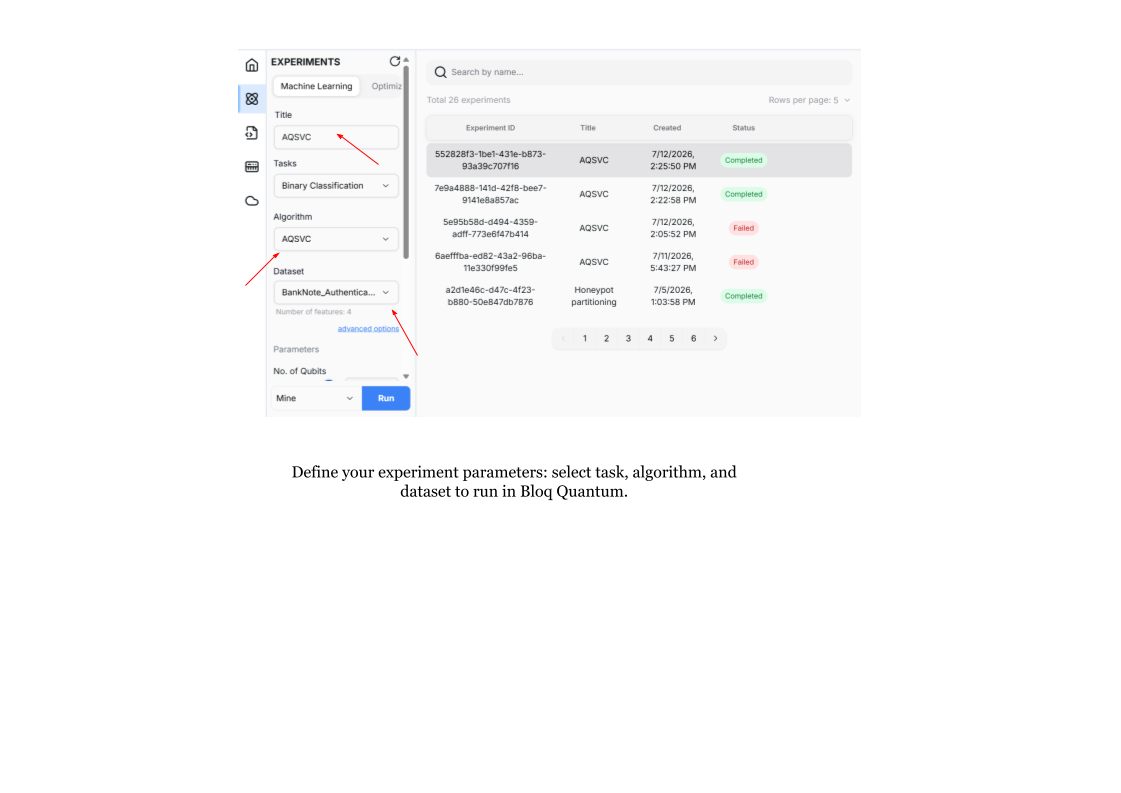

Figure 2: Creating a new project from the AQSVC Machine Learning template. -
Upload and Configure Data: Load your normalized Banknote Authentication dataset into the Editor Module. Ensure your features (Variance, Skewness, Curtosis, and Entropy) are scaled between $0$ and $1$. The platform will automatically map these to the quantum state input layer.
-
Define Evolutionary Hyperparameters: Configure your population size, generation limit, and crossover/mutation rates inside the workspace interface.

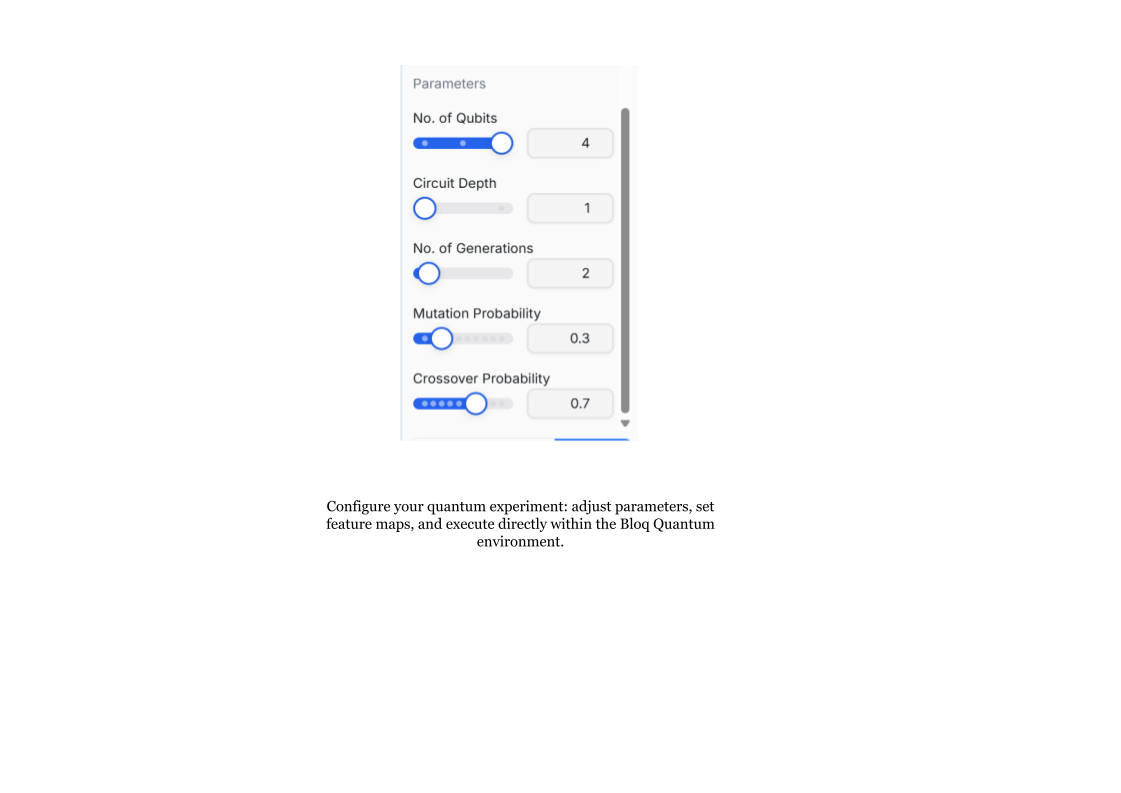

Figure 3: Defining genetic algorithm parameters like population size and mutation rates. -
Run and Review: Click Run to execute the evolutionary loop. The platform distributes your population of circuits across your chosen hardware backend, and you can monitor the "Fitness Score" in real-time as the algorithm selects the best architectures.

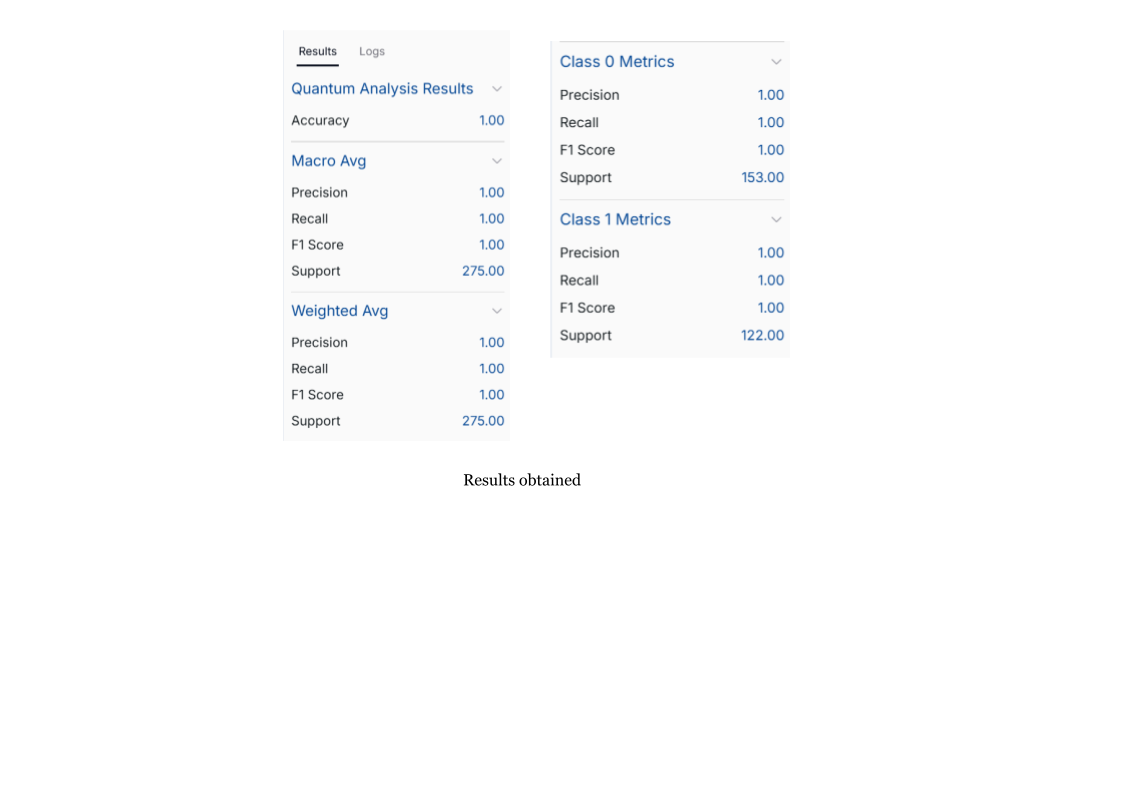

Figure 4: Real-time results page tracking fitness improvements and final accuracy scores.
Checkpoint Evaluation
Test Your Understanding: What is the primary advantage of AQSVC over standard QVM workflows?
Frequently Asked Questions
Why does a Quantum SVM need a feature map?
The feature map is the mechanism that encodes classical data into a high-dimensional quantum Hilbert space, allowing the quantum kernel to identify complex patterns that are often invisible to classical linear classifiers.
What happens if I use a fixed circuit instead of an adaptive one?
Using a fixed circuit often results in wasted potential, as the circuit's depth and structure are chosen by trial and error rather than by the needs of your specific data distribution.
How does the genetic algorithm improve performance?
The genetic algorithm automates the search for the optimal circuit architecture by iteratively breeding and mutating circuits, ensuring the final feature map is mathematically tailored to the dataset.
How does this framework prevent vendor lock-in for our quantum infrastructure?
AQSVC is algorithmically decoupled from specific hardware backends, allowing your team to deploy optimized circuits across different quantum processors without rewriting your core logic.
What is the expected ROI of switching from manual to adaptive circuit design?
The primary ROI is a drastic reduction in human engineering hours, as the genetic algorithm automates the search for optimal circuit depth and structure that would otherwise take months of manual trial-and-error.
Is this approach scalable for high-dimensional enterprise datasets?
Yes. Because the genetic algorithm iterates on smaller, more efficient circuit architectures, it optimizes quantum compute utilization, making it more sustainable for larger data environments compared to brute-force manual selection.
